LaRue Enterprises Owned by William A. LaRue

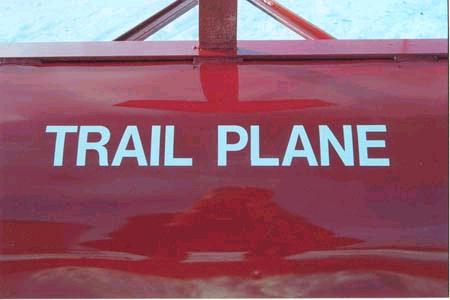

TRAIL PLANE
THE PERSONAL GROOMER
Since 1972
MADE BY LARUE ENTERPRISES
621 Charlton Rd
Ballston Spa, NY 12020
(518) 399-5472 Ask for Will
e-mail
will@laruewoodworking.com

NEW FOR 2009, XC -Ski Groomers!!!!!

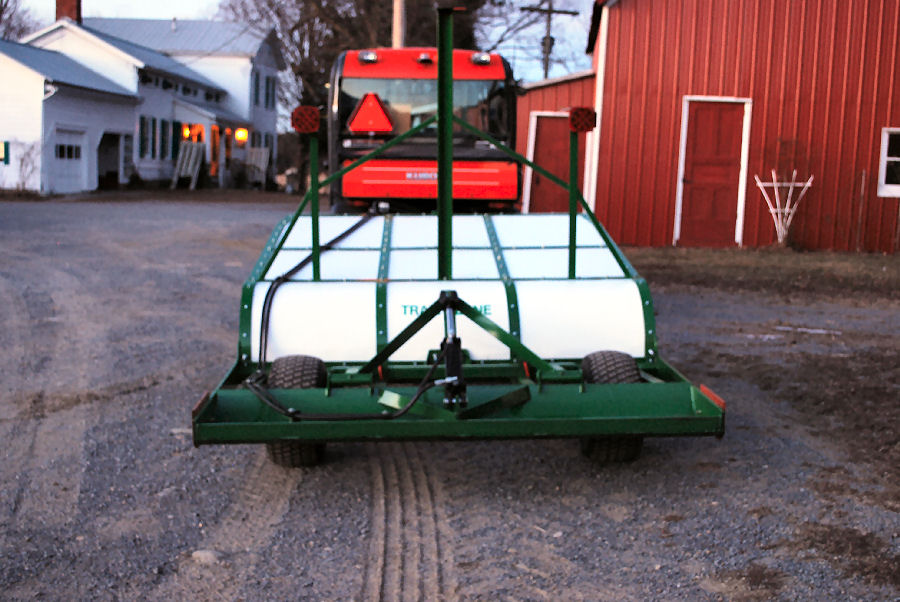

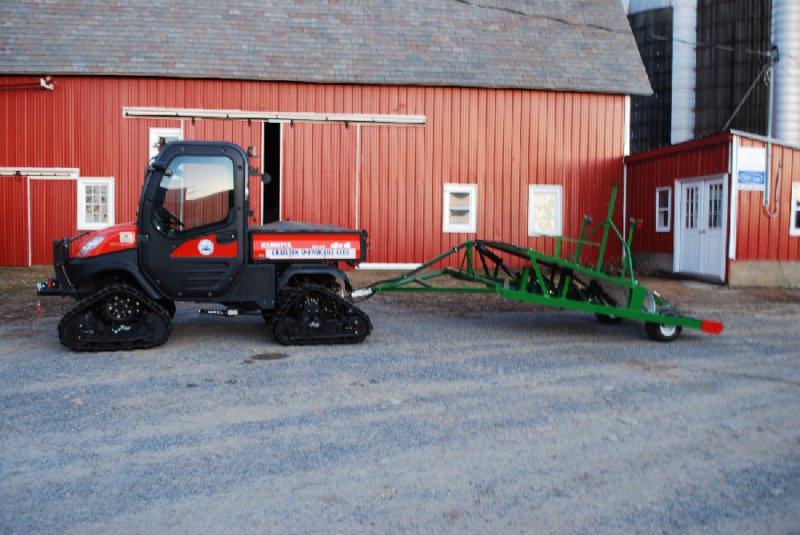

RTV Pulled Groomers



Plenty of ground clearance in lifted mode

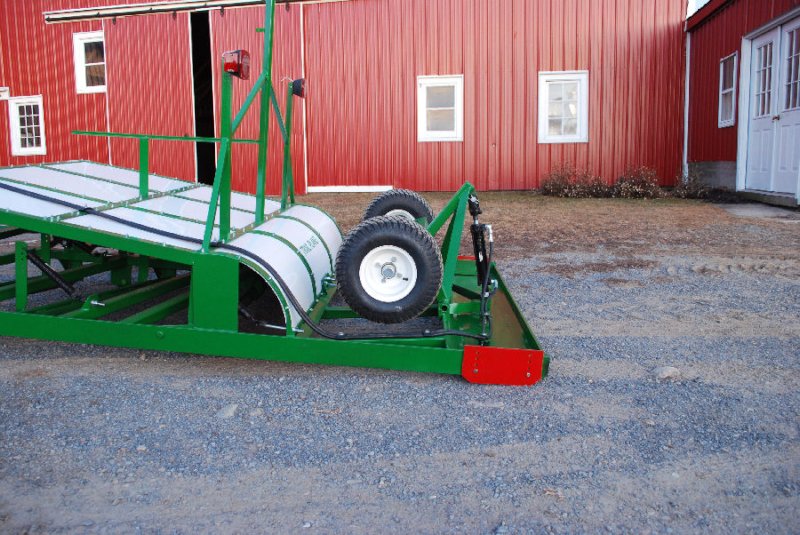

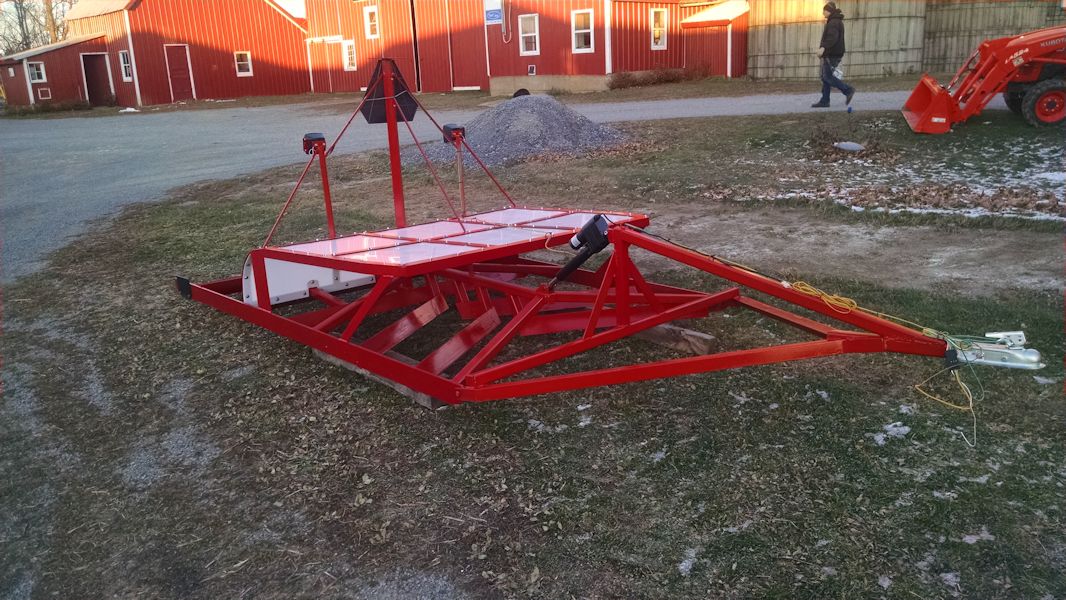

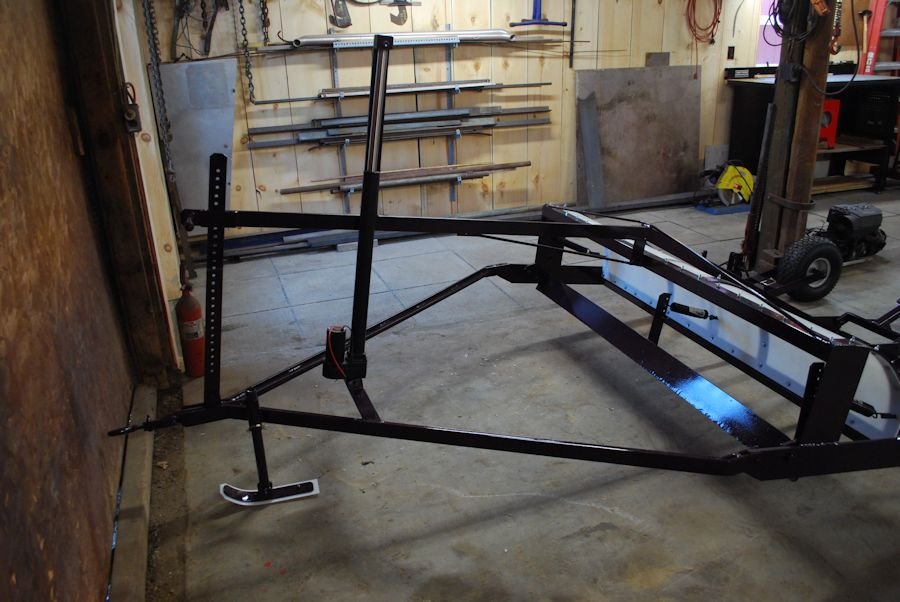

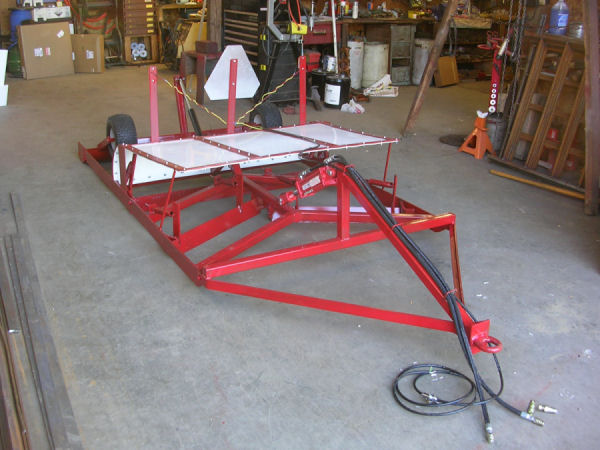

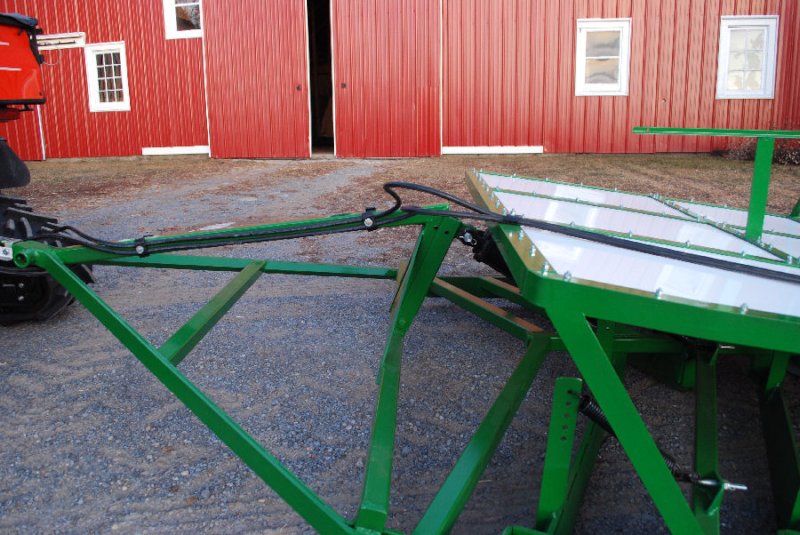

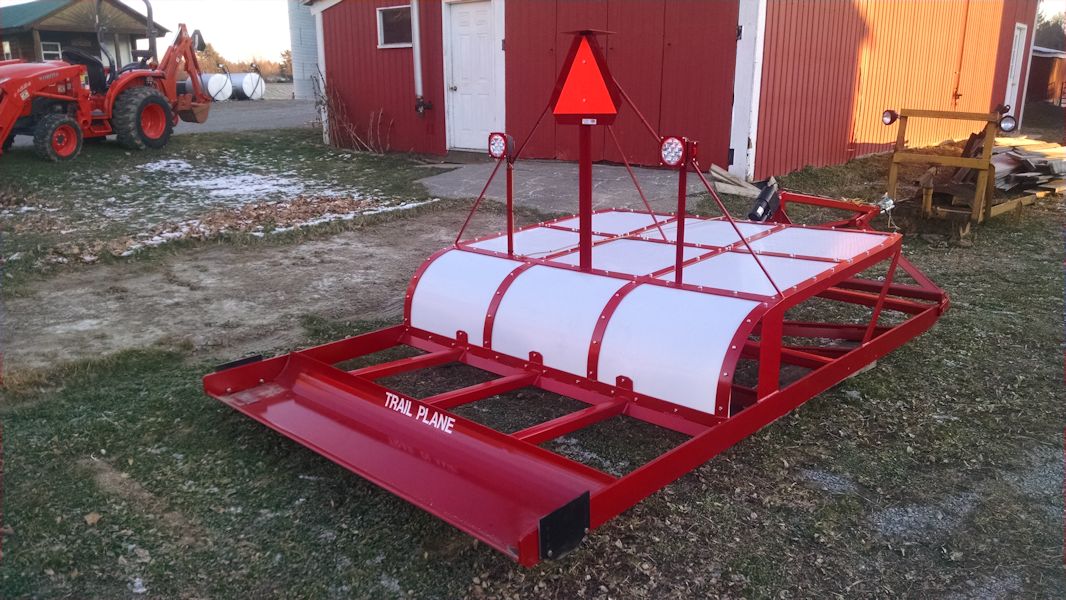

6'X10' 6 trip blade model

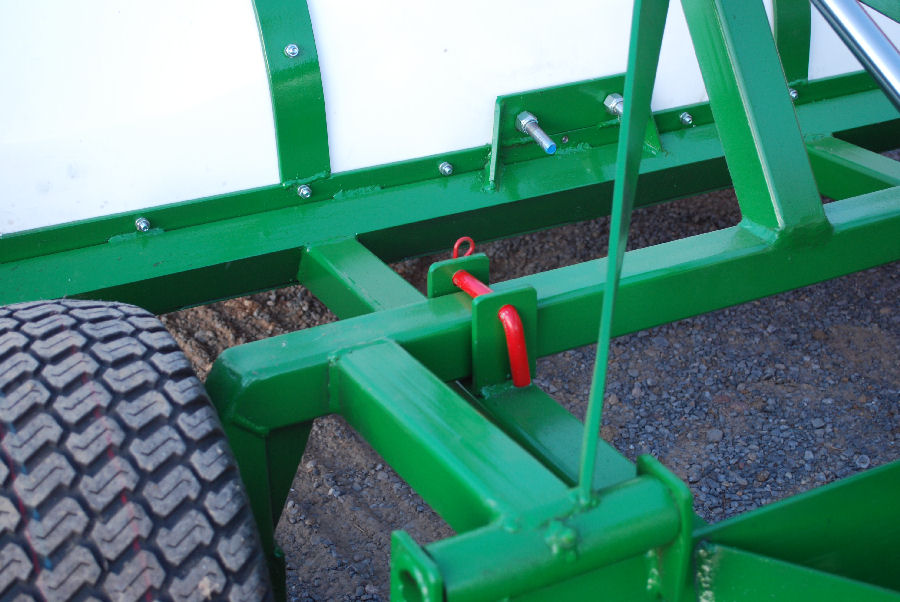

Available with a floating hitch that can also be pinned solid

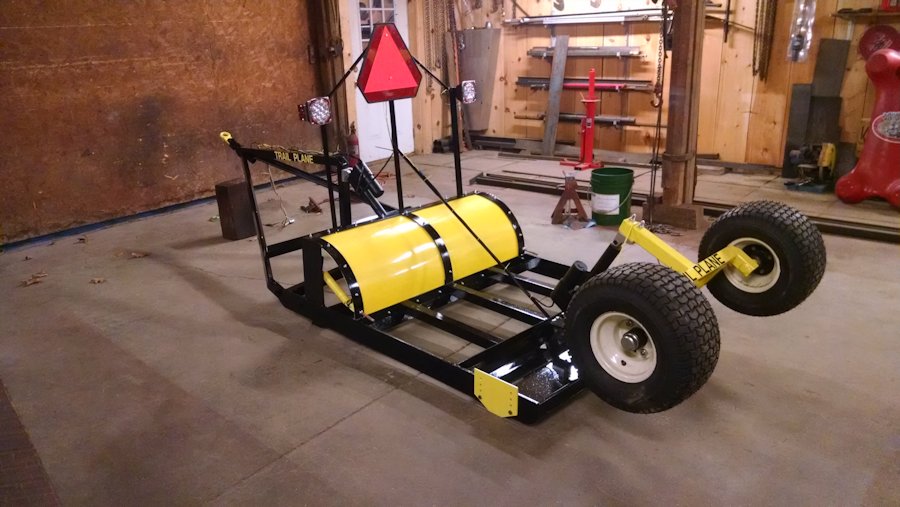

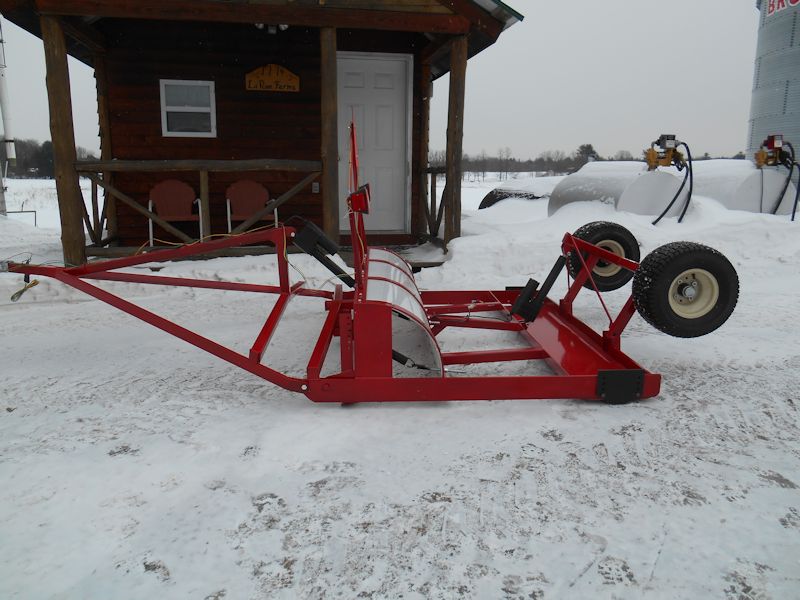

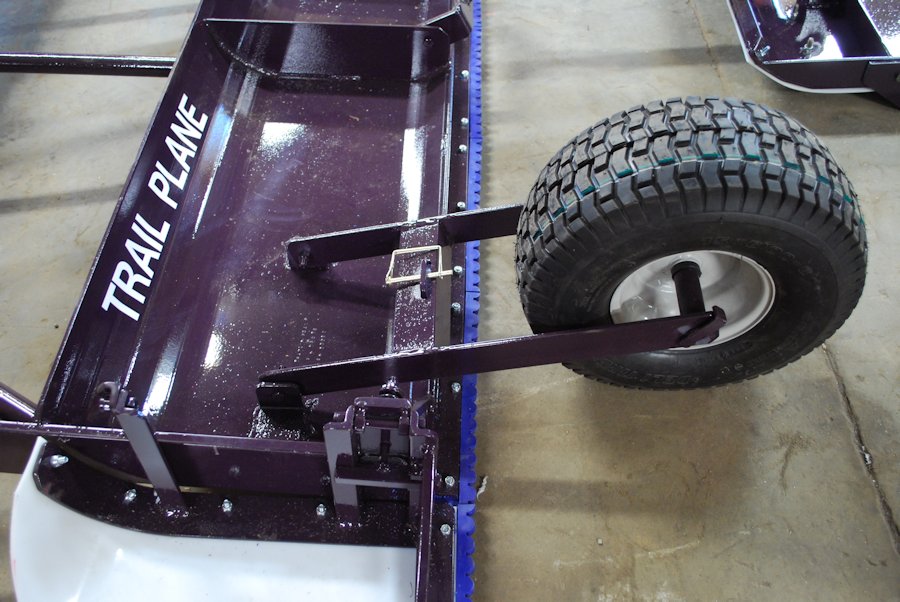

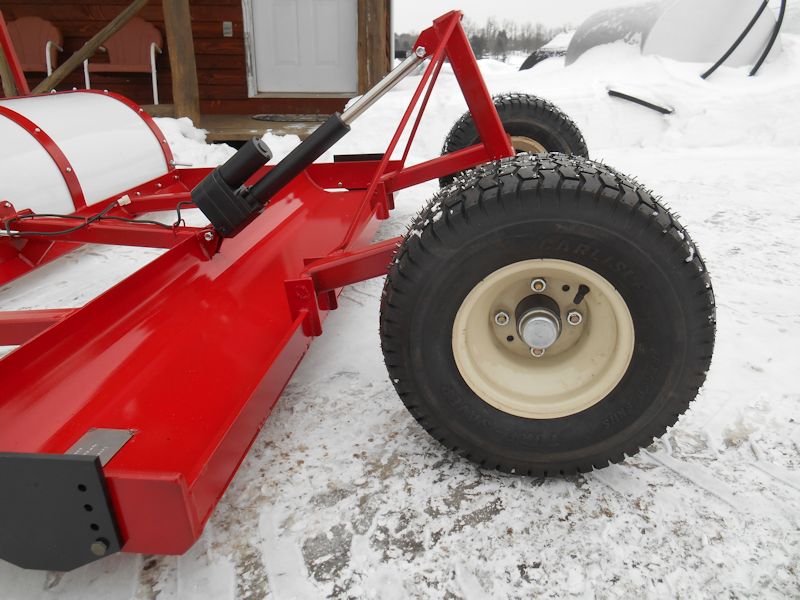

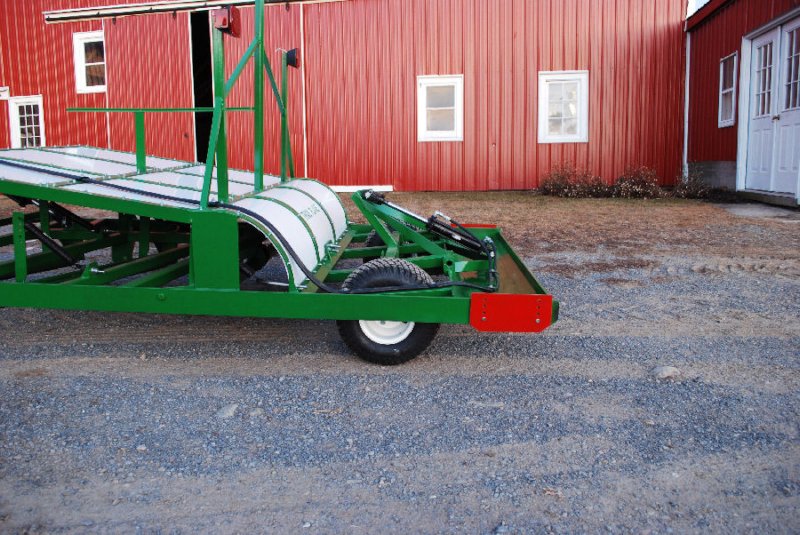

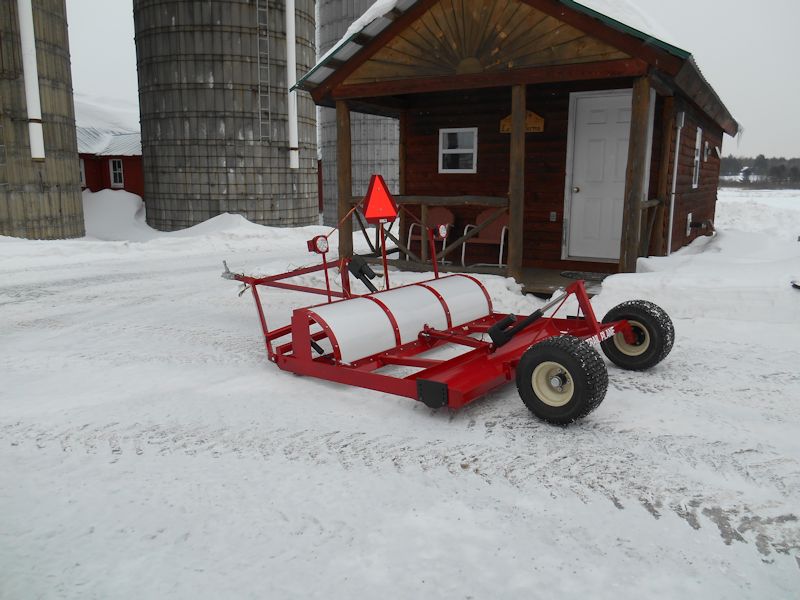

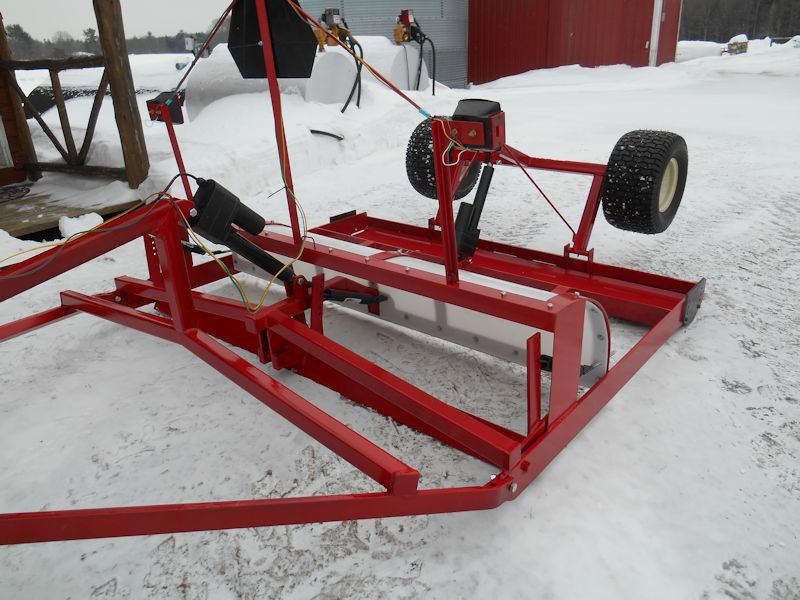

Wheels in up position

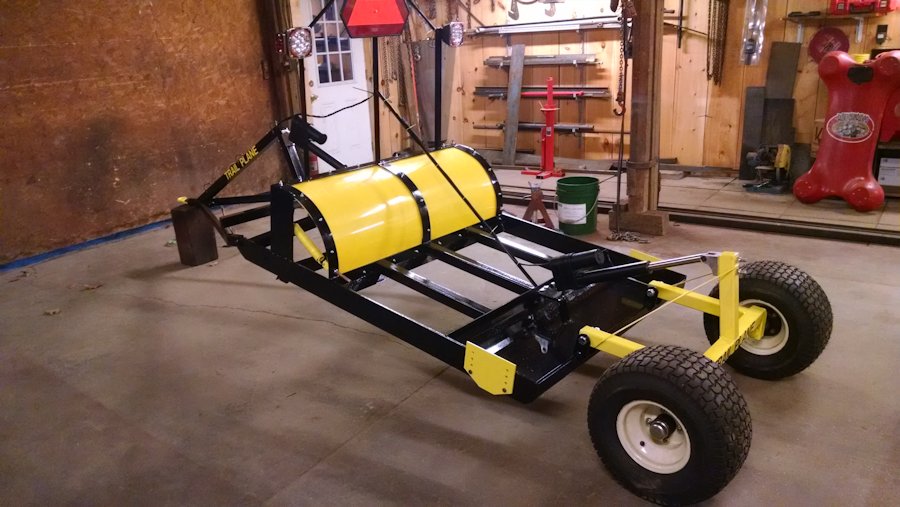

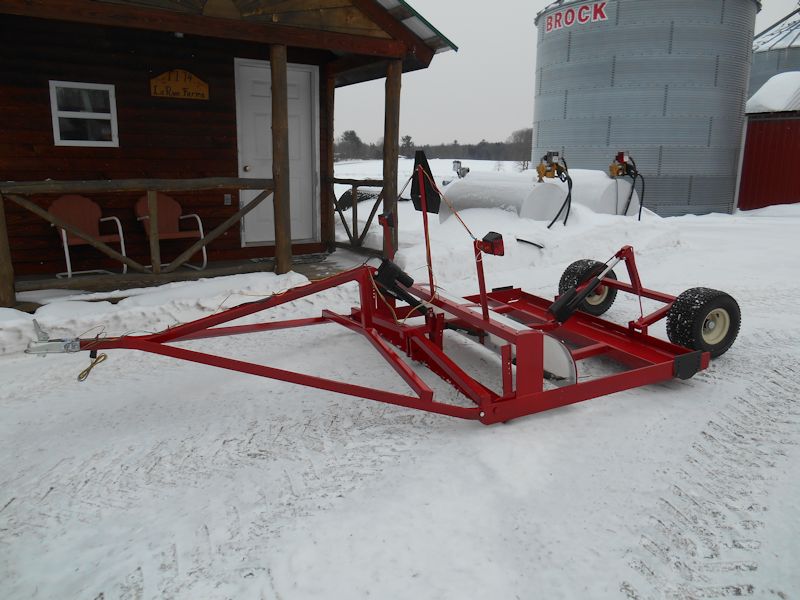

Wheels in down position

Wheels can be pinned down for storage or transport

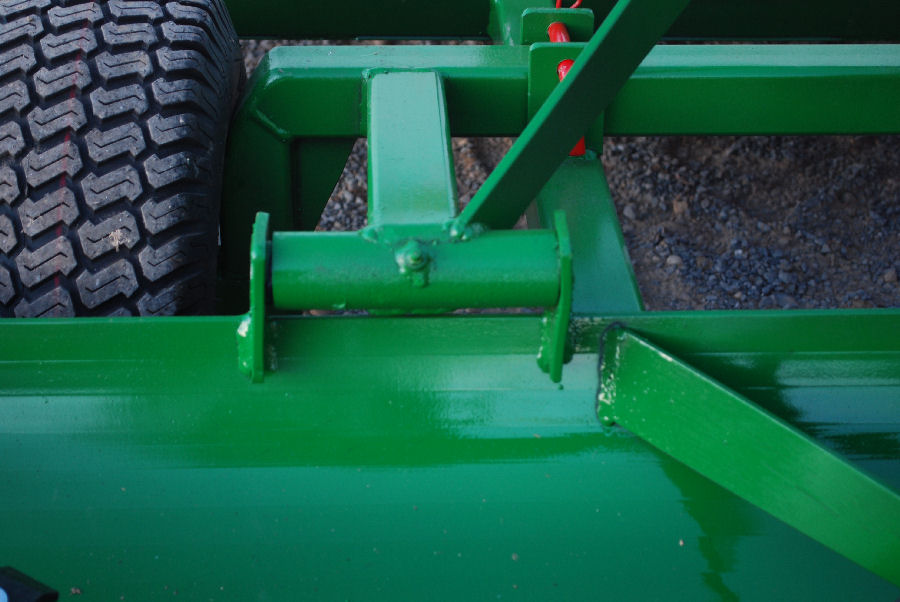

Greasers on pivot points for wheels

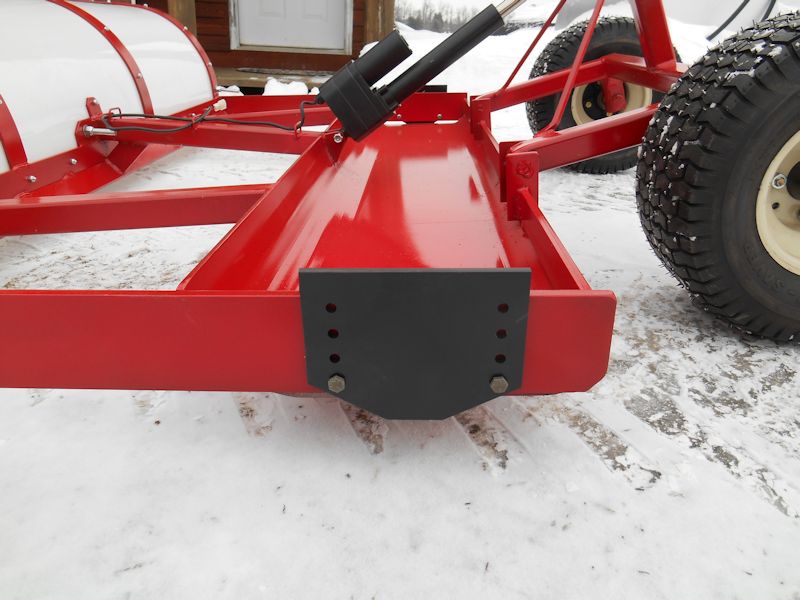

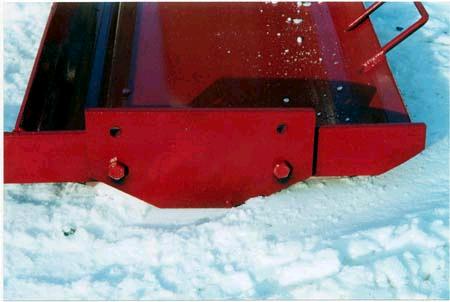

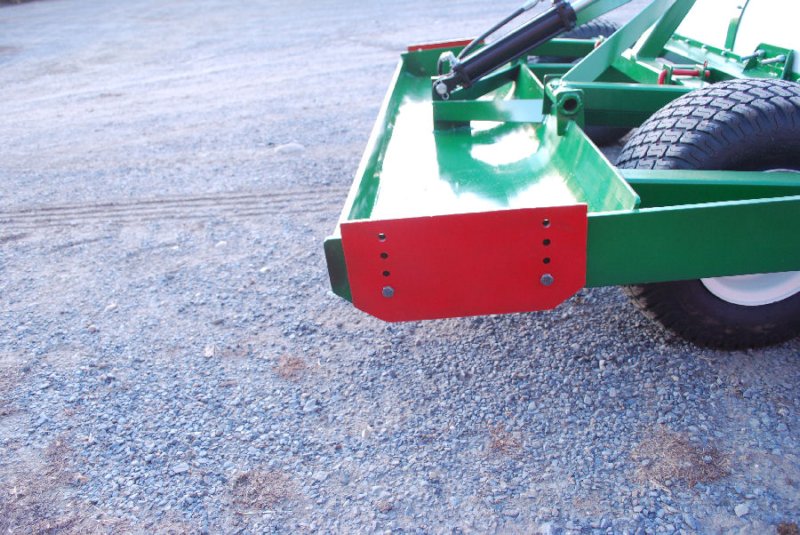

Adjustable skid plates

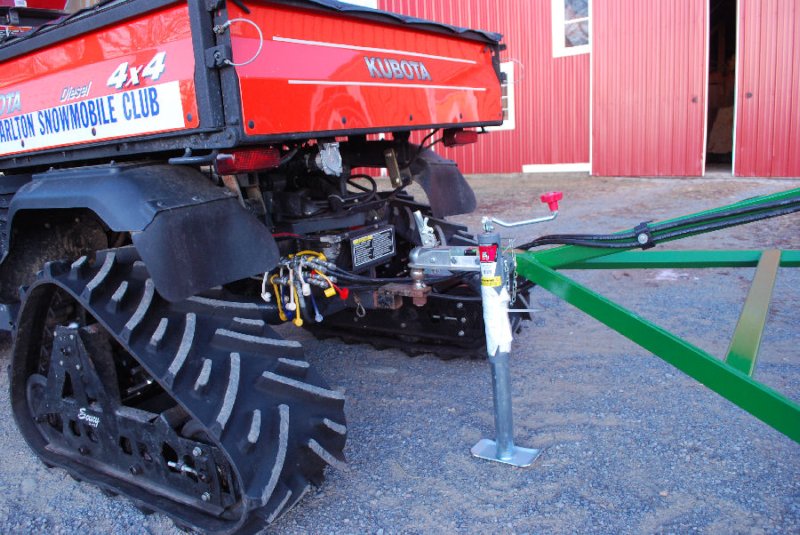

Ball or pintle hitch available with jack lift

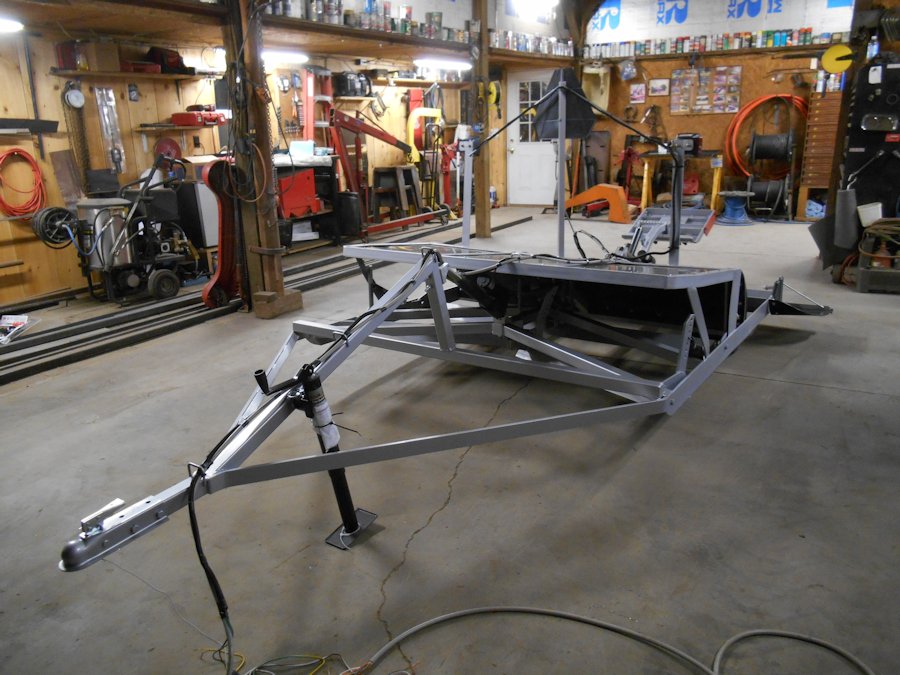

5'X8' 3 blade Model

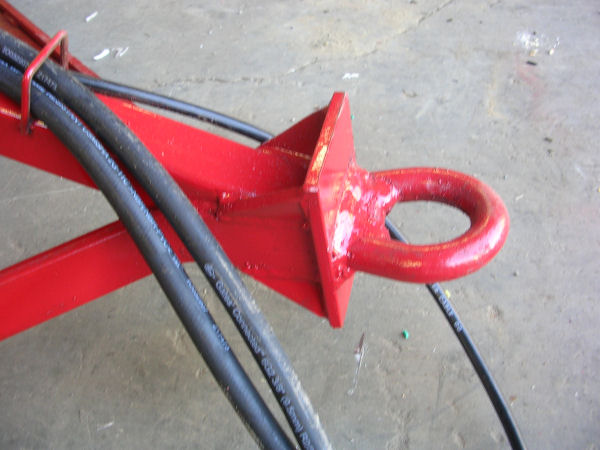

Solid pintel eye

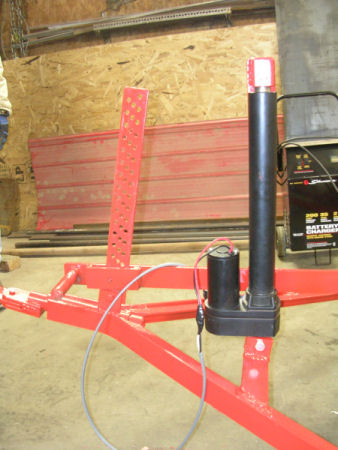

Electric screw jack available on wheel lift

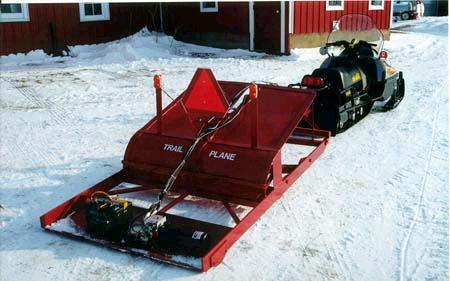

Snowmobile Pulled Trail Groomers

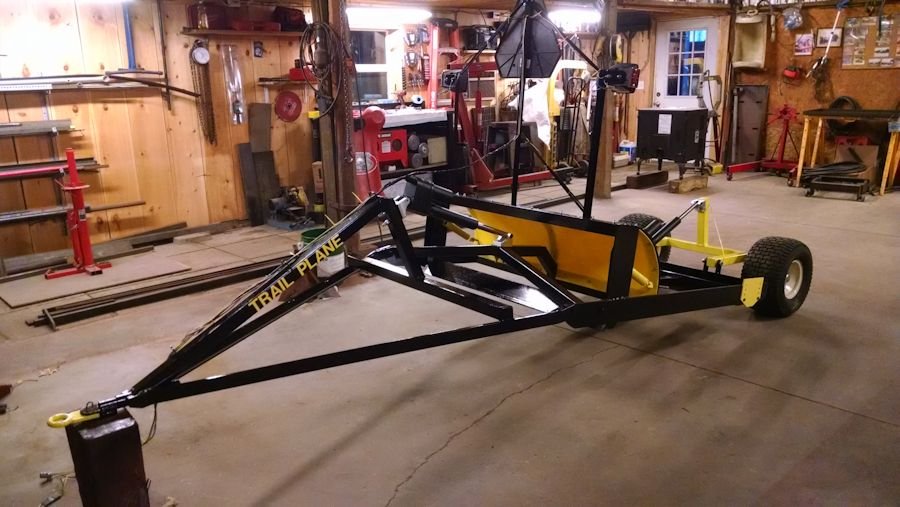

*Comparison between standard and custom built.

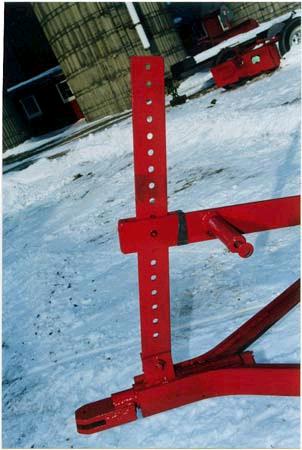

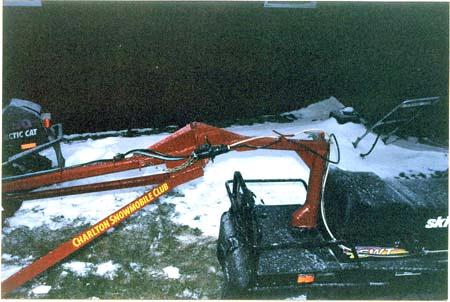

*High Profile ball goose-neck style hitch with/without brake-away


*Triple hard-edged solid mounted blades

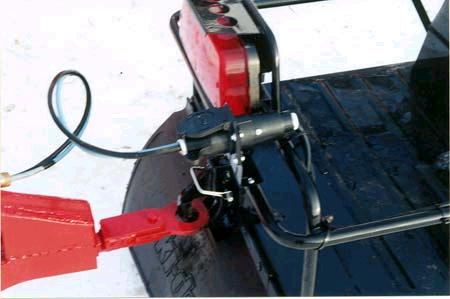

*Pintle style Hitch with full use of carrier basket on sled.
*Seven prong plug for UP/DOWN and charging  battery (extra)

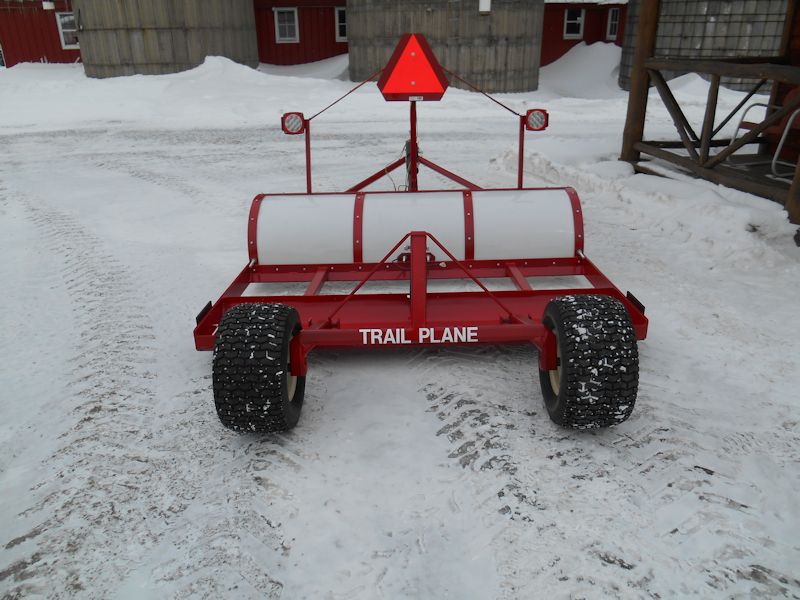

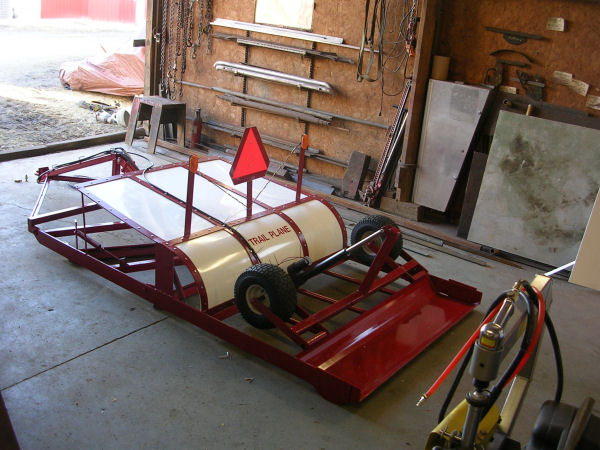

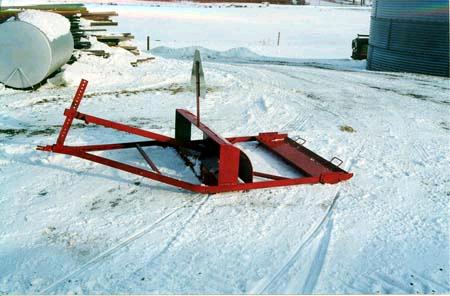

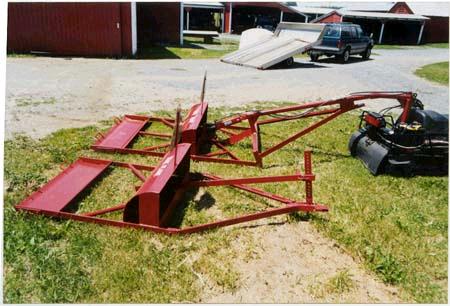

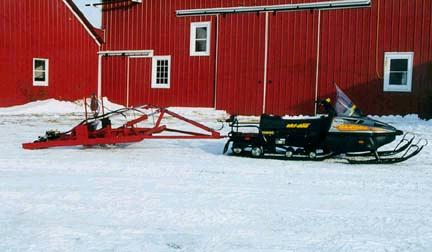

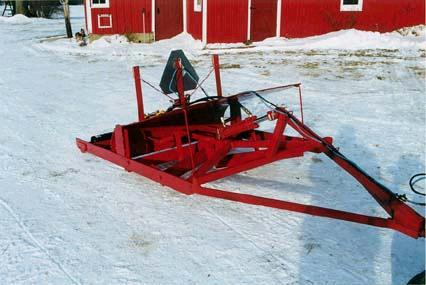

*Side profile view

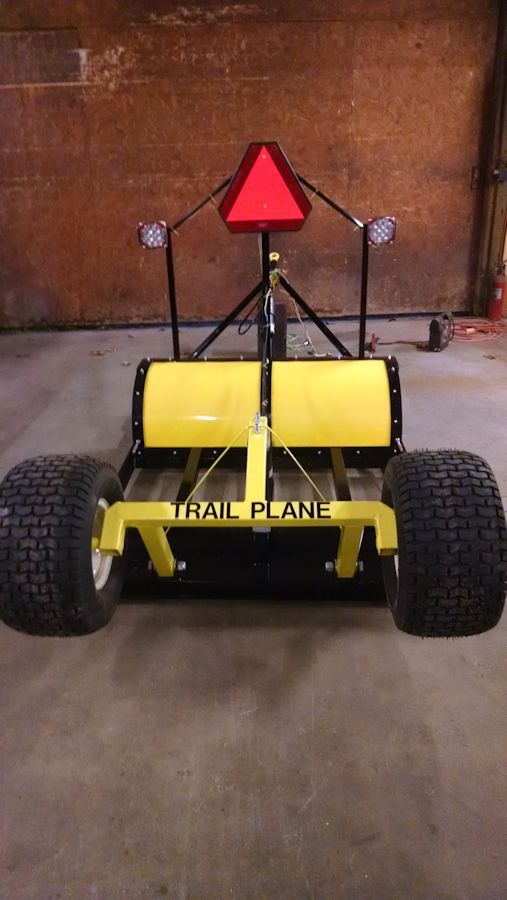

*Rear view, hydraulics, SMV and flashers

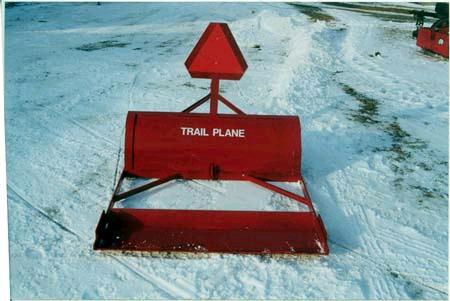

*Front view

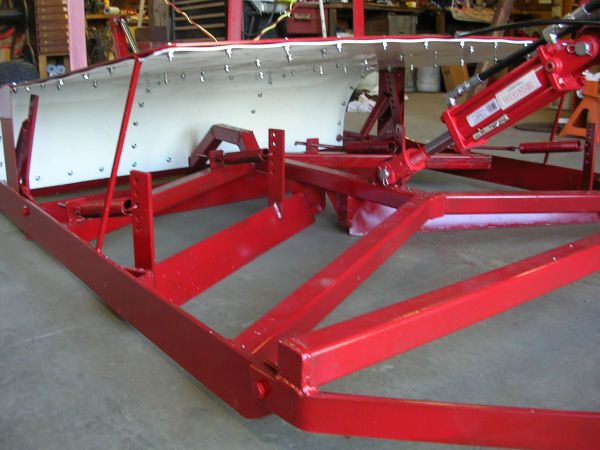

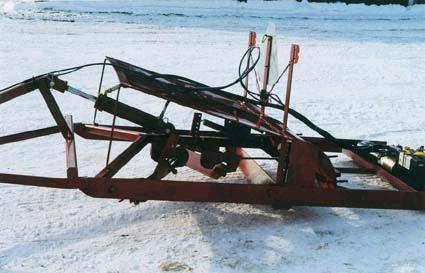

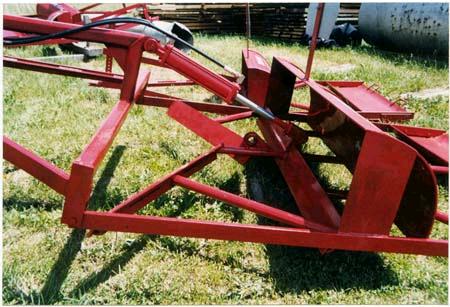

*Side view of top snow shield and hydraulic cylinder

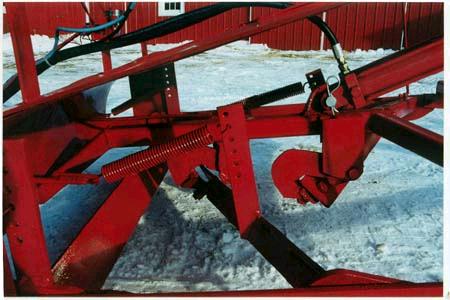

*Triple Blade, hard-edged, spring reset, trip blades

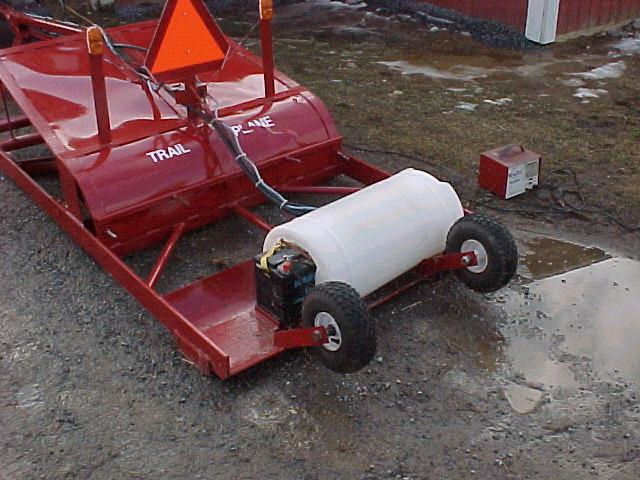

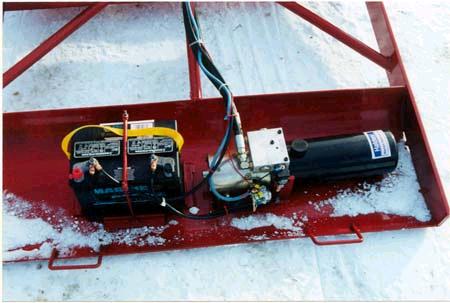

*Electro-Hydraulic lift and battery

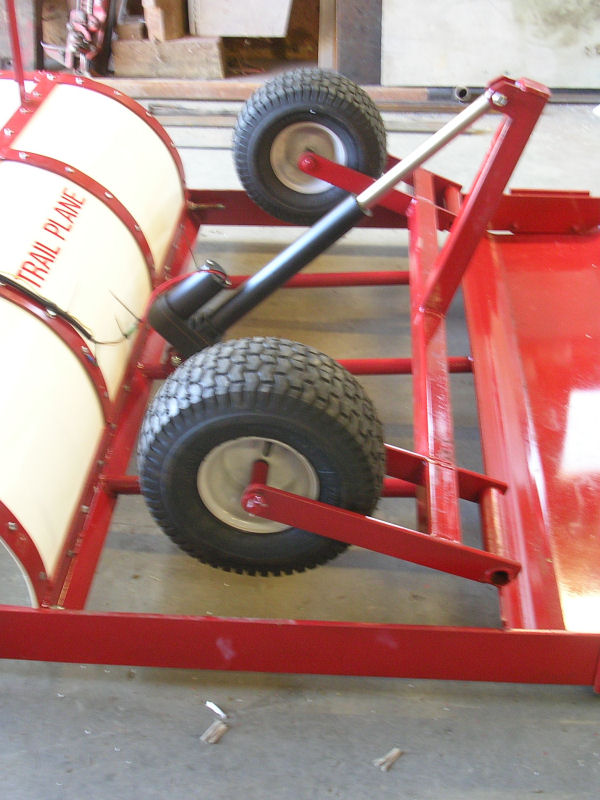

*Rear Wheels
*Plastic, battery and electro-hydraulic, cover

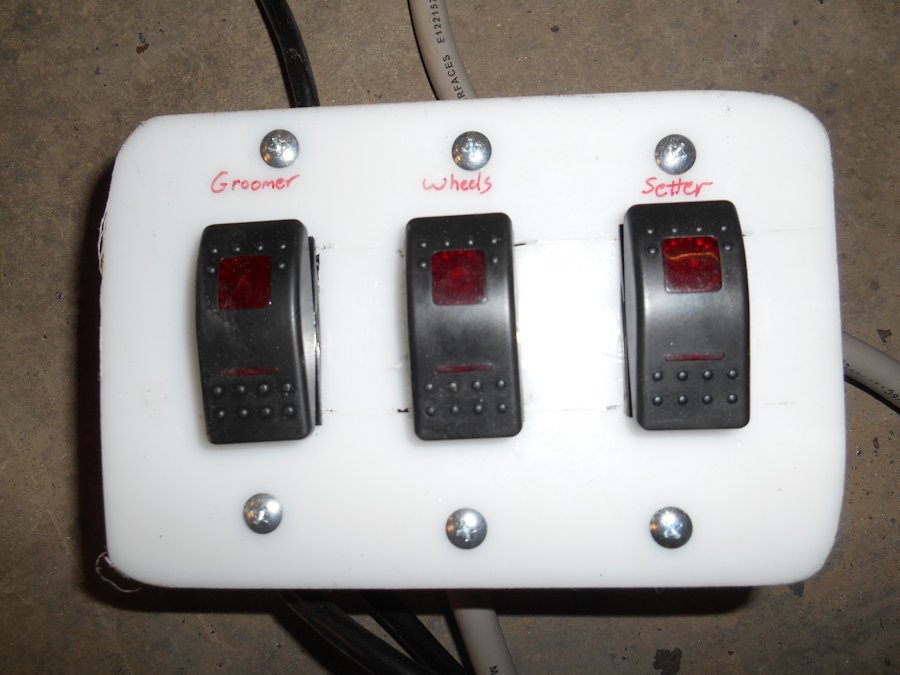

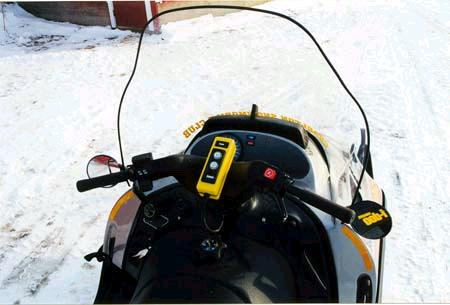

*Easy access UP/DOWN controls

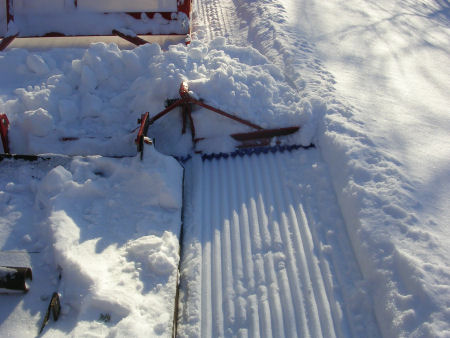

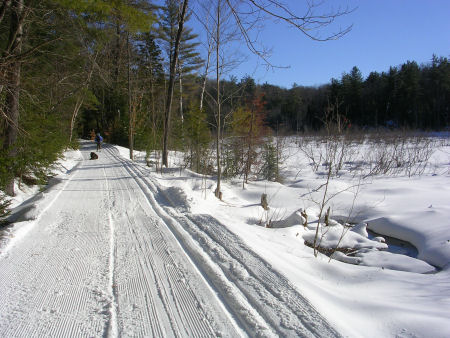

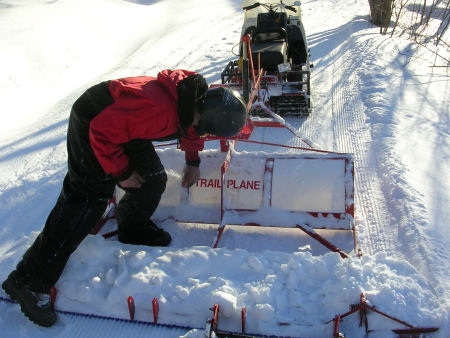

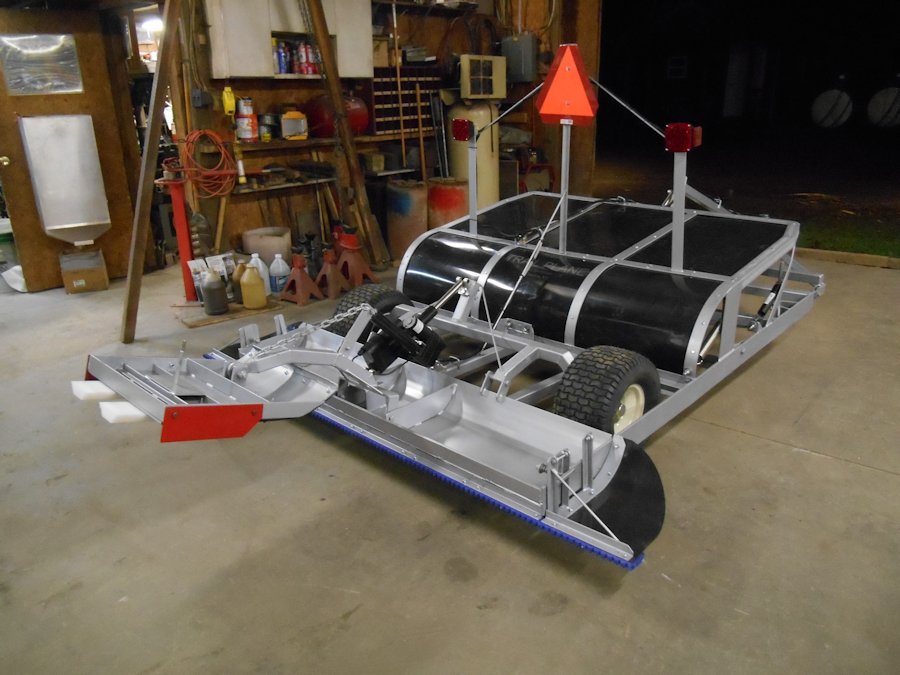

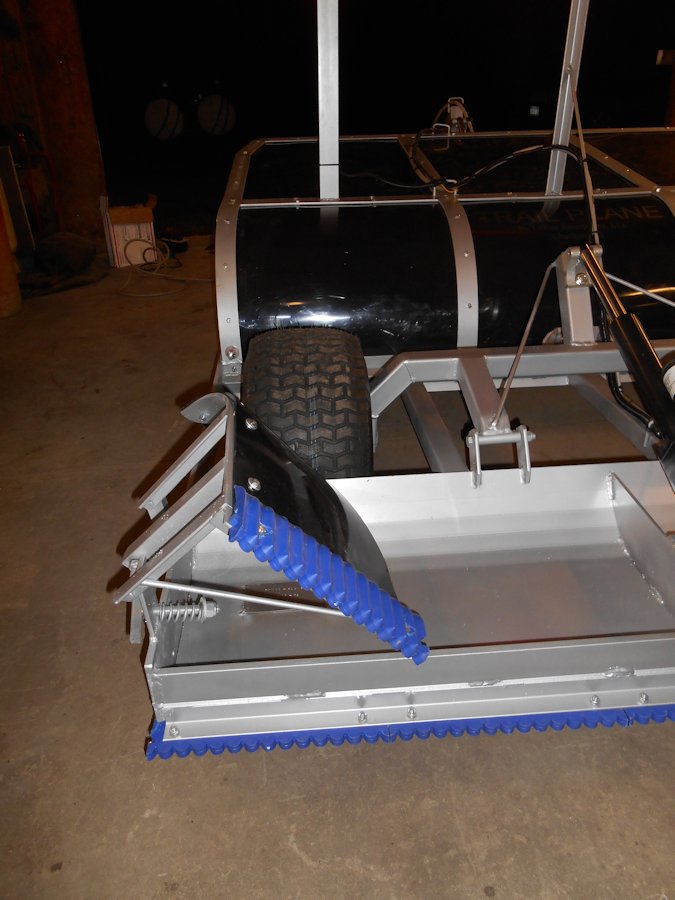

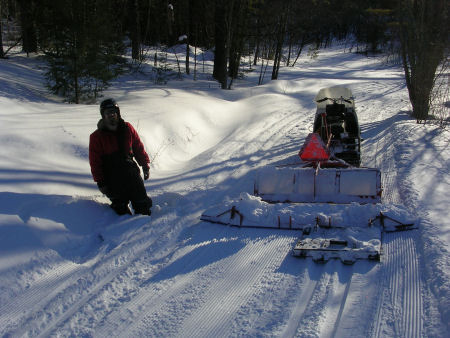

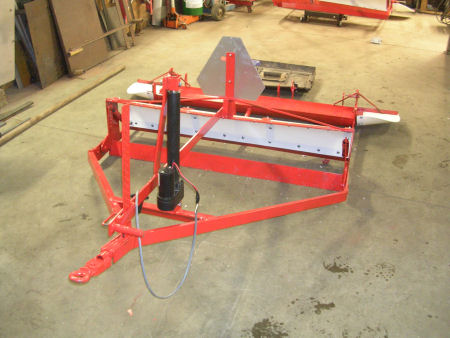

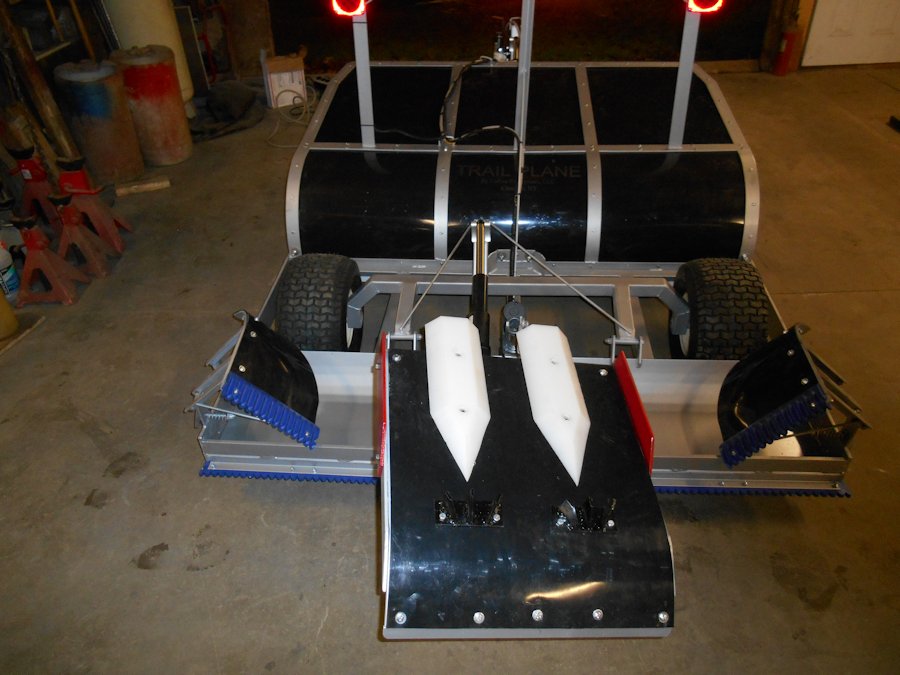

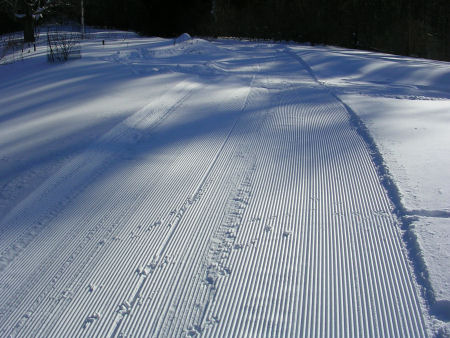

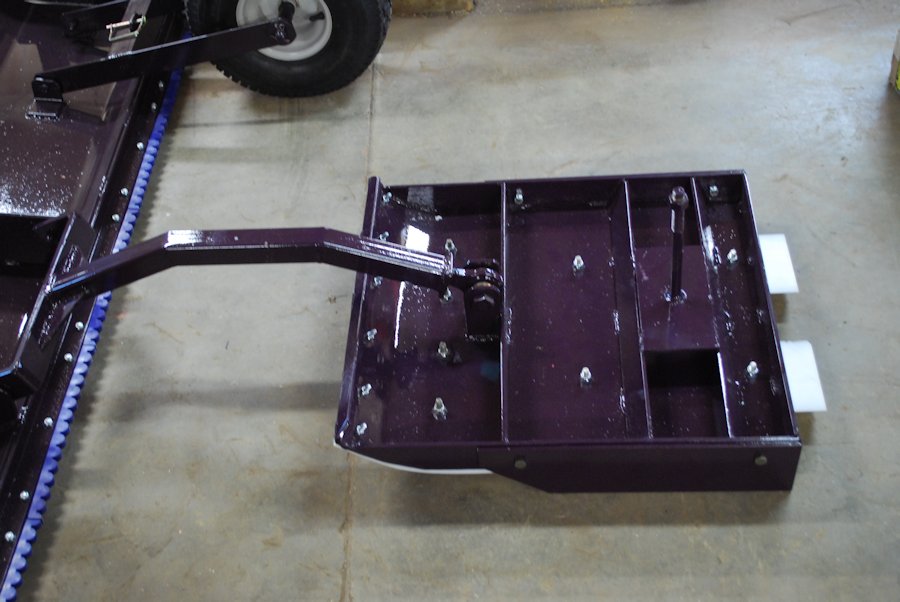

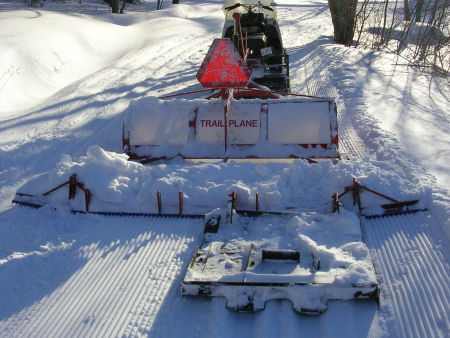

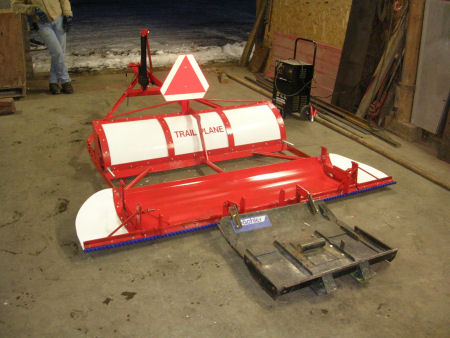

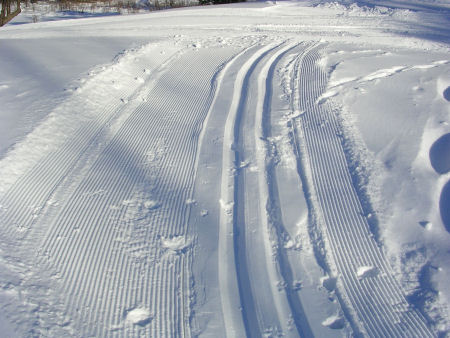

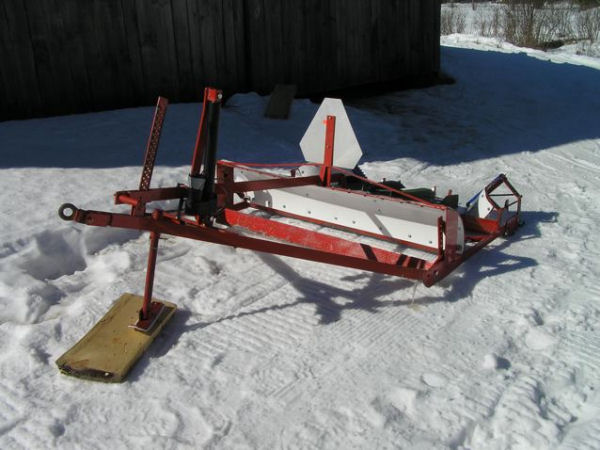

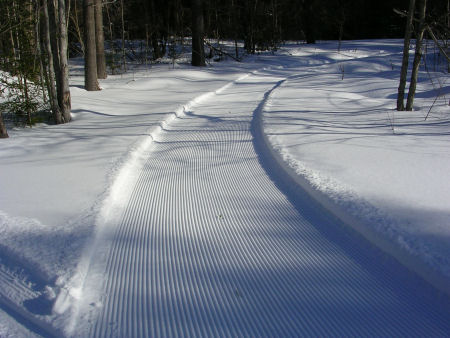

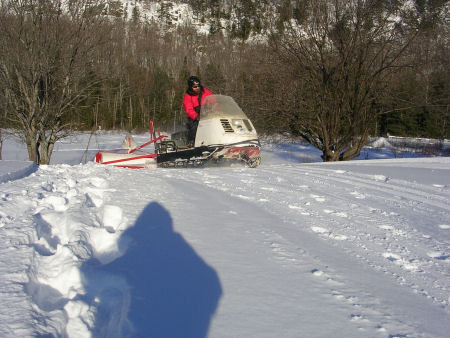

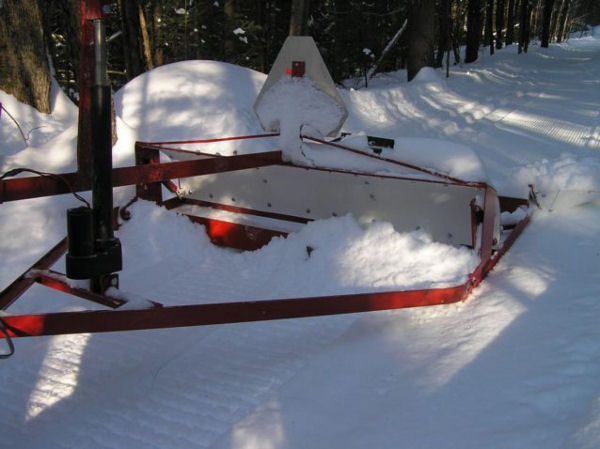

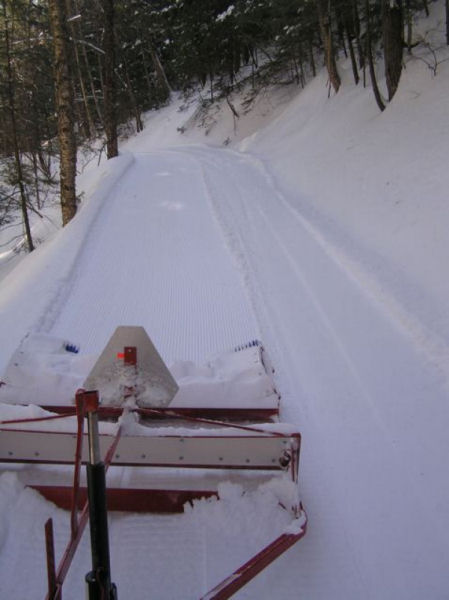

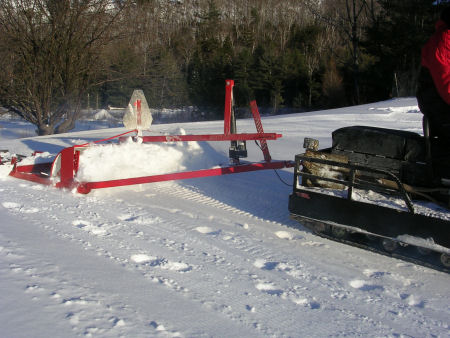

XC Ski groomers

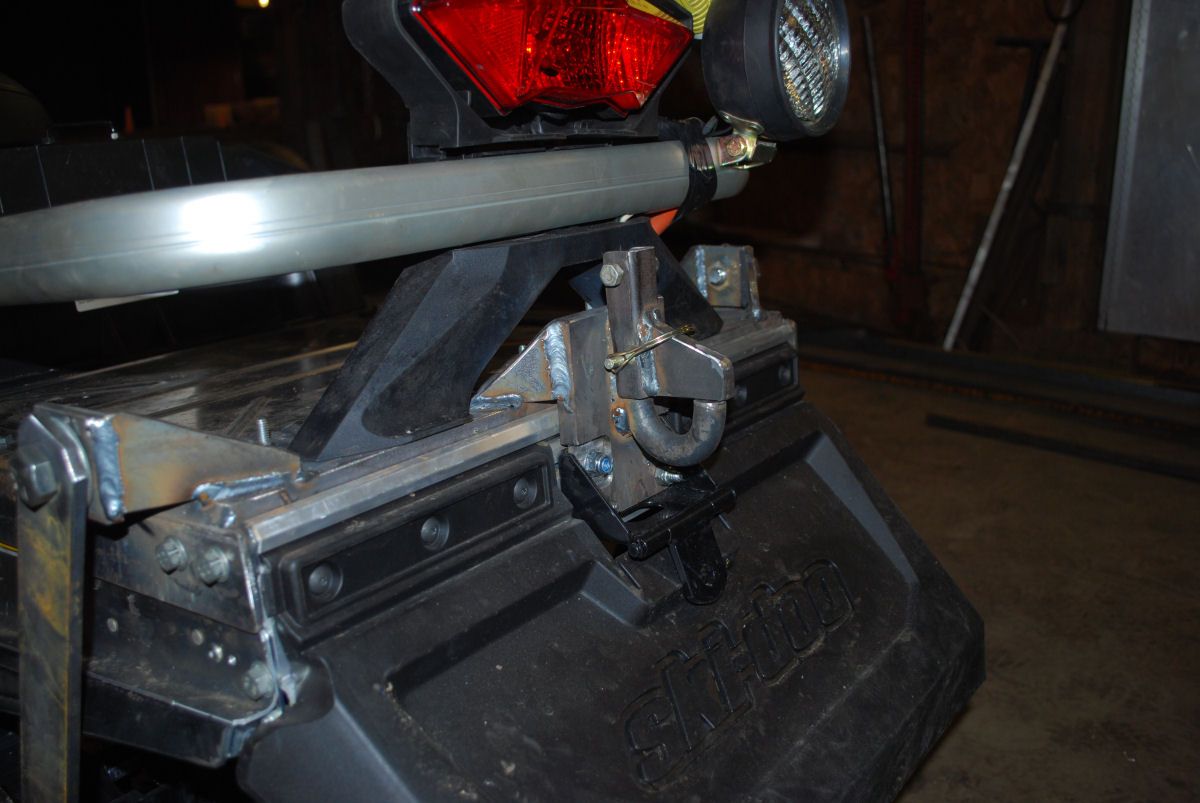

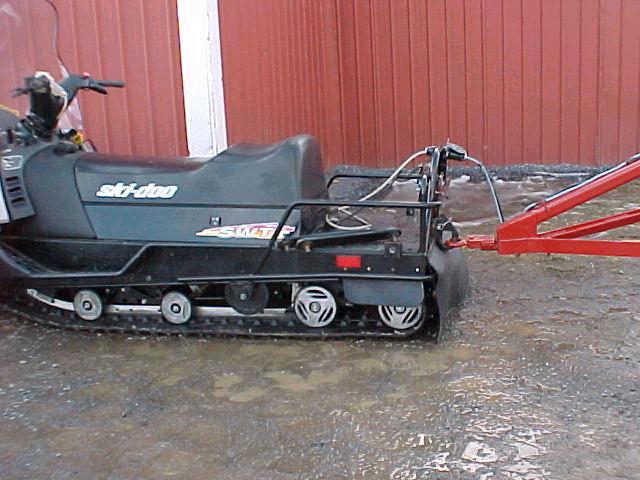

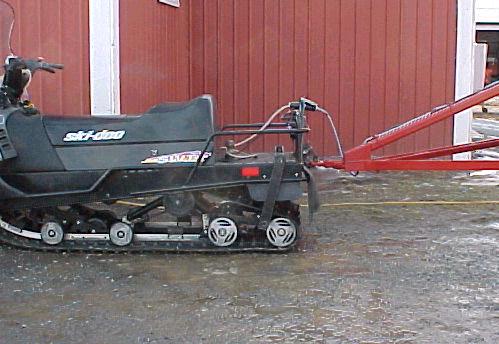

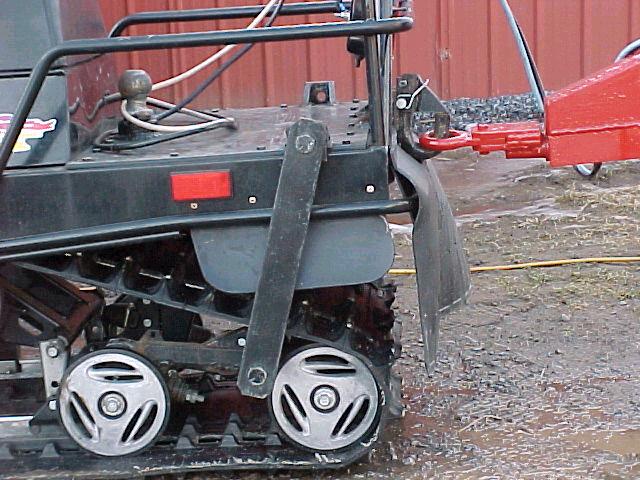

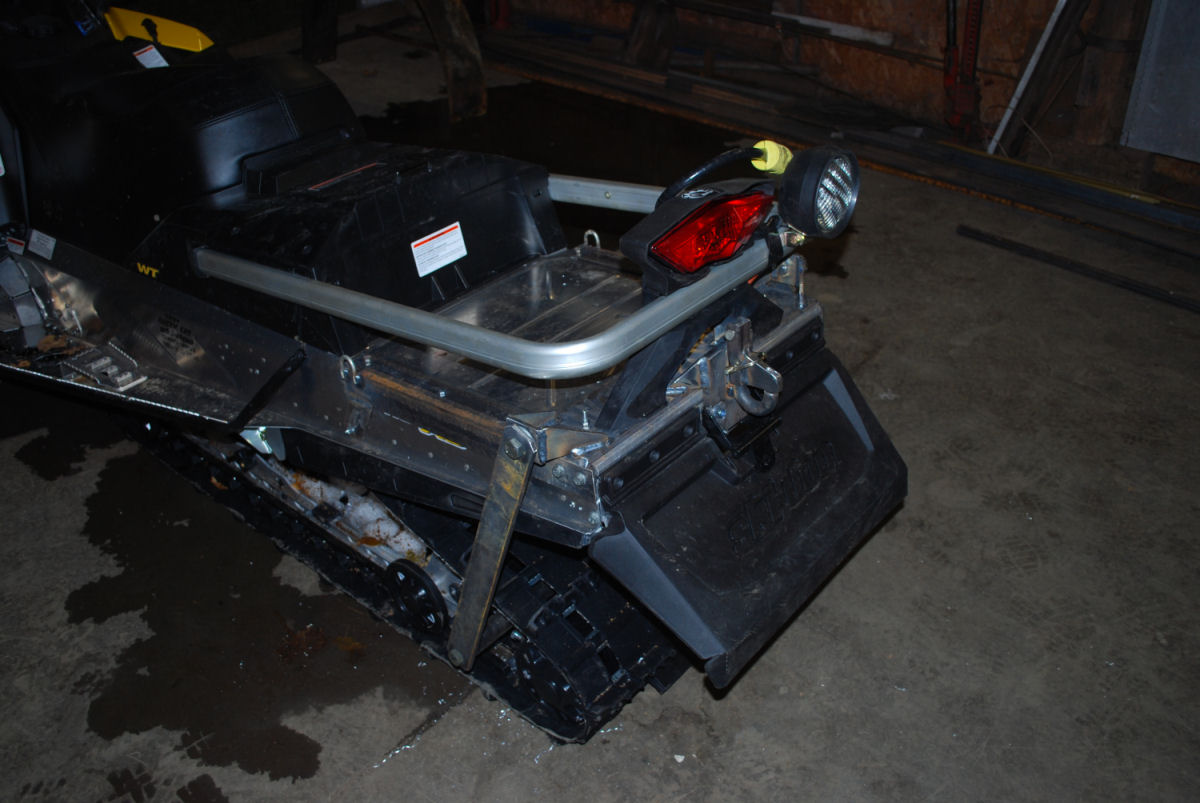

Quick-attach solid suspension /pintle hitch


When not being used for grooming;
Four bolts removes solid suspension bars to return sled back to full rear suspension travel, then two 1/4" bolts removes rest of solid suspension

.
Without solid suspension kit              With Solid Suspension kit

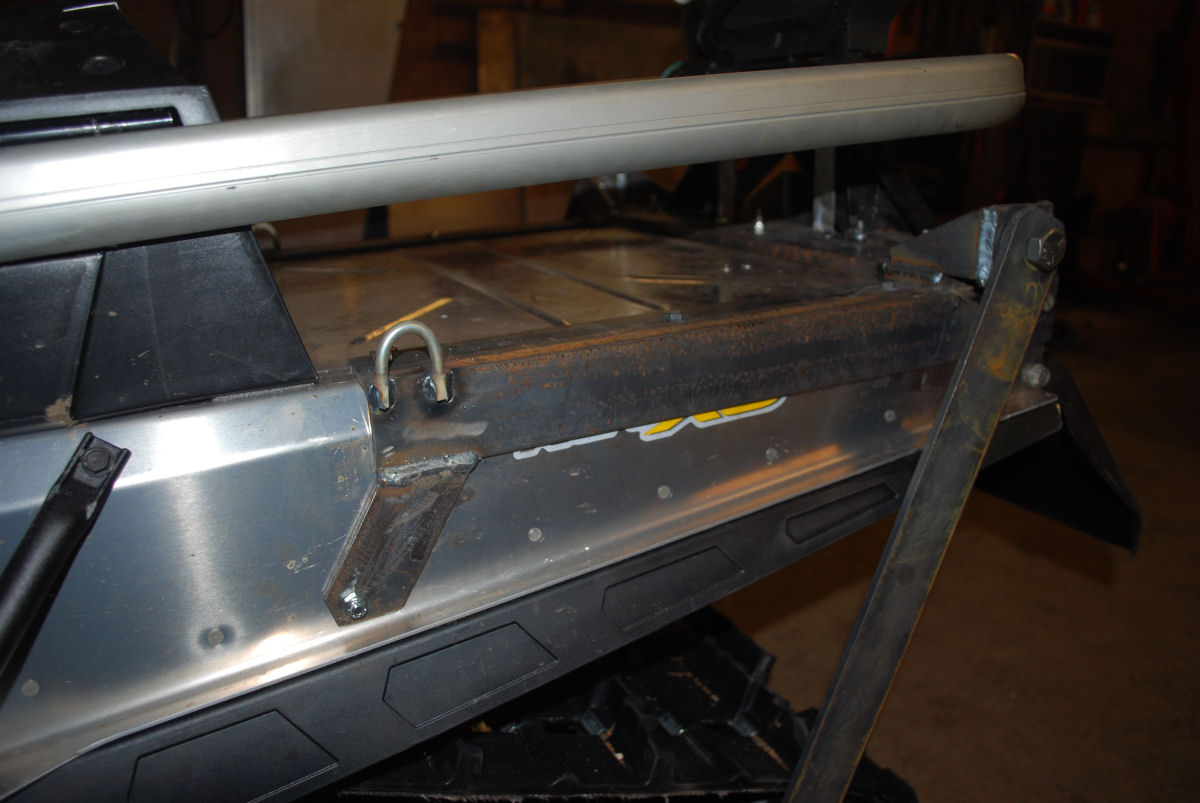

2010 Skandic



  Highly recommended for reasons:
1)  Takes all down-force pressure off the aluminum tunnel and transfers it directly to the track

2)  Stops rear of sled from moving therefore stops unwanted groomer depth variations allowing for a MUCH nicer grooming job, WITHOUT compromising front or mid suspension of sled.
3)  With this solid suspension, the sled turns almost the same radius either towing the groomer of not hooked to anything.  Without this solid suspension  the sled virtually will not turn due to the weight beyond the fulcrum for the rear suspension which in-return takes all the weight off the skis.
4)  Using the Pintle hitch  with the solid suspension the sled WILL turn shorter then using a ball hitch, and the groomer will follow the sled around a tighter turn due to the mounting position of each type of hitch.
(the same as a tag-along trailer versus a goose-neck trailer)
5)  Pintle hitch has no limitations to movement like a ball hitch does.
6)  Using a pintle hitch also allows for the full use of the basket on the sled.

Other Notes:

1) All Trail Plane models come with the blades at an angle of appox. 60 degrees instead of straight up like all our competition groomers.

A) The angled-back blade works on the same principle as ANY agricultural plow allowing the blades to use the earth's gravity and friction forces as an efficiency tool on the smaller groomers. As the blades start into the snow they want to go deeper forcing more down force to the sled giving the sled more traction. *Using a 2000 Ski-Doo Skandic SWT, (pulling a single blade 45", 220 lbs. Trail Plane), testing showed that when the groomer starts into a large hard mogul, the Trail Plane would develop enough down force to bottom-out the rear suspension, (an extra 300-400 Lbs. more on the back of the sled for more traction), allowing for a 4-6" deep cut!

B) Therefore we have had to use a "snow catch curl" (the curved pieces above the blade and the large tin shield over the front blades on the bigger groomers) because the snow is thrown up instead of "balling" in front of the blades, like all of our competition.

1) This allows the blades to stay clear and do a much better job grooming instead of trying to ride up and over the snow that is in front of the blades.
2) The curl also acts as a carrier for the excess snow to be dropped into a low spot when needed.
3) The curl is also 1" above ground level which allows an even spread of snow at all times for the packer pan to pack.
4) The large shield over top of the front blades, on the larger groomers, is for greater grooming speeds (7-10mph without losing any snow over the top of the groomer). This shield deflects the snow back down into the "snow catch curl" allowing the groomer to do its job.

2) On the groomers utilizing the hydraulic options is much faster and a whole lot stronger than the electric screw. The operator can instantly change the cut of depth of ¼" at a time in a fraction of a second or raise the groomer up or down 14" in approx. 3 seconds all from a push of a button from the seat.

3) All the hydraulic Trail Plane groomers use solid mount cylinder instead of a floating hitch like the competition because of the use of the ½" side rails, instead of the use of box side rails.

A) The solid mount cylinder allows the groomer to work the same exact way as a wood plane, with a blade centered between two solid points(the back of the sled and the packer pan).
|B) The depth of cut is determined by the operator, (instead of pre-setting the depth of the blades below the box side railing). Because the ½" rails will cut into the snow, where the box side rails are designed to act as skies that ride on top the snow, this allows the Trail Plane to do a better, flatter, smother job.
C) If the side rails do get bent, they can be straightened instead of having to be replaced liked the box side railing.

NOTE: "Bridging" the sled and groomer between two bumps is not a concern because the operator can keep that from happening because of the speed of the hydraulics over the electric screw.

All Standard groomers starting at only

Width
Single Blade
Thriple Blade
5 Blade
40"
$1599
$2349
$2849
42"
$1659
$2399
$2899
45"
$1699
$2499
$2949
48"
$1849
$2599
$3149
52"
$1949
$2699
$3249
56"
$2099
$2899
$3449
60"
$2249
$3099
$3699
66"
$2399
$3249
$3849
72"
$2599
$3499
$4149




Standard Features
           Options
  • Light weight Starting at only 190 lbs
  • Spring trip Blade
  • Easy-to-use manual blade height adjuster
  • 12V electric acuator
  • Single hard-faced straight blade
  • Electro-hydraulic Lift

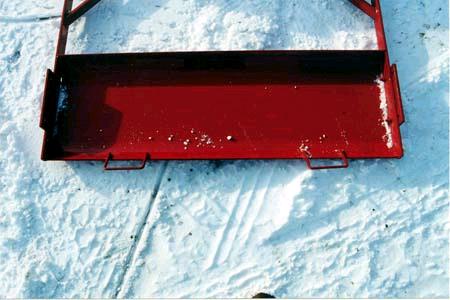

  • Snow catcher, leveler, and packer pan
  • Multiple blades 2-6 more
  • 360° swivel hitch
  • Solid Mounted Wheels
  • SMV emblem
  • 12v Electric Lift Wheels
  • Easy grip rear lift handles

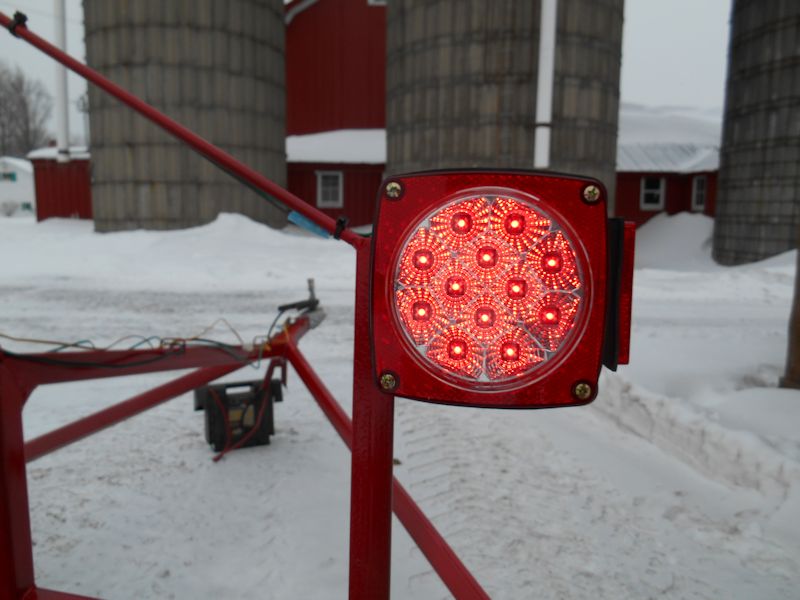

  • 12v Flasher lights
  • Bright red for visibility

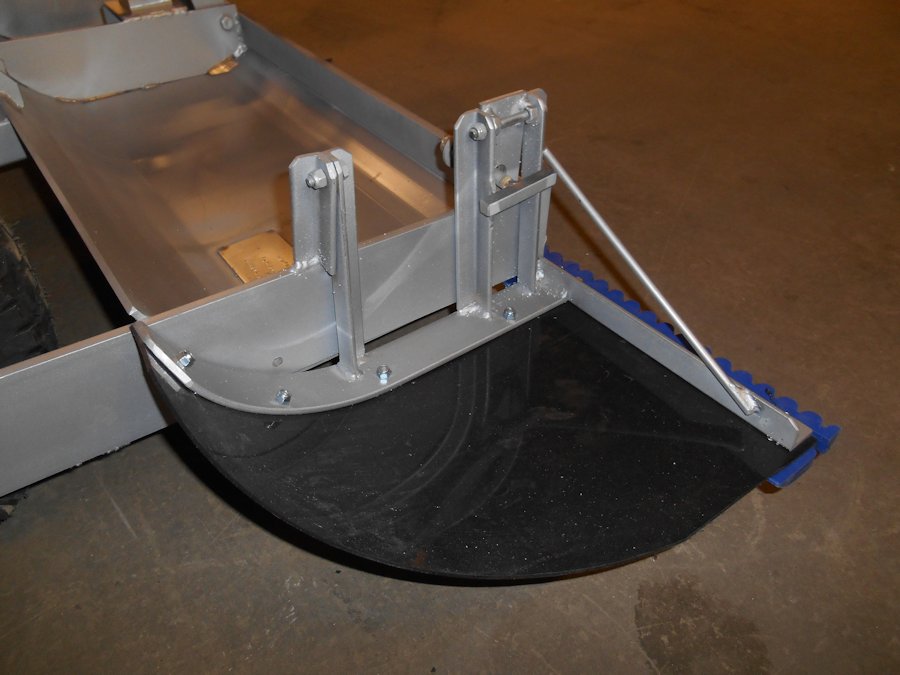

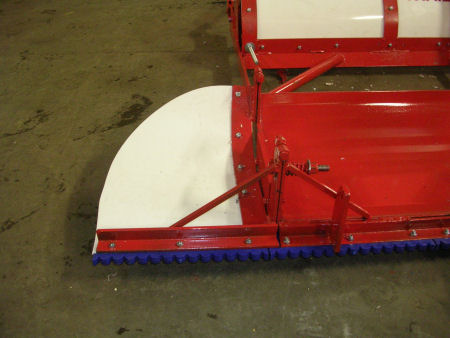

  • XC-Ski snowcomb
  • Comes with break-away draw pins

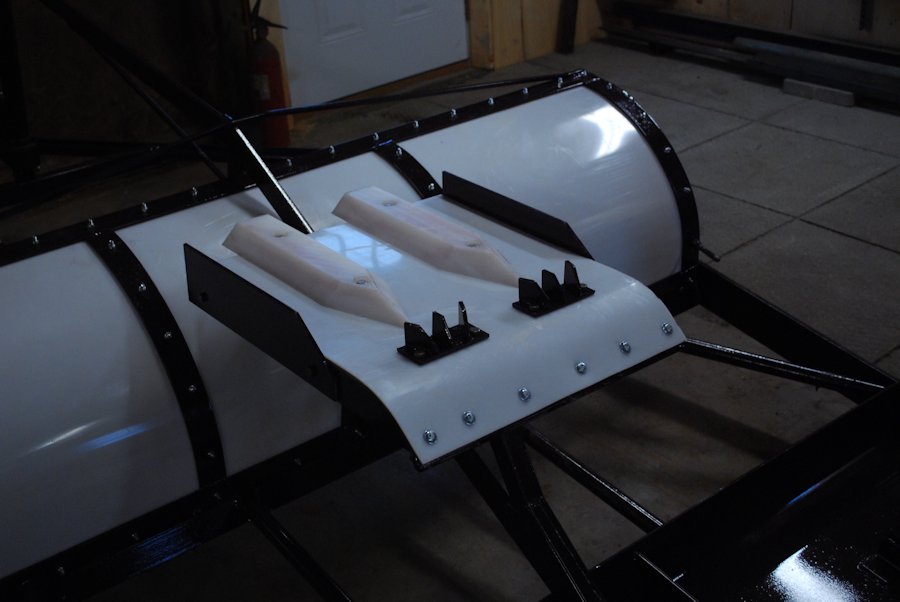

  • XC-Ski Track setter
  • Adjustable and replaceable guide shoes
  • 12v Electric lift XC-Ski Track setter
  • I.D. tagged with serial number
  • 12" spring overlap wings



Availiable Options:

Snowmobile Pintle Eye - $30.00
LargePintle Eye - $100.00
Ball Hitch - $125.00
1000/3000lbs 12V Electric Actuator Lift - $700.00
12V Electro-Hydraulic Unit and Cylinder - $1,550.00
Hydraulic Cylinder Only - $350.00
Spring Reset Trip Blades - $250 per blade
Solid Mounted Wheels - $300.00
Hydraulic Lift Wheels - $500 (without Cylinder)
1000/3000lbs 12v Electric Wheel Lift - $900.00
XC-Ski Snow Comb - $200.00-$360
XC-Ski Track Setter - $500.00
1000/3000lbs 12v Electric Actuator Setter - $750.00
XC-Ski Trail 1' Wings - $350.00
Snowmobile Solid Suspension - $450.00(old style suspension)
$650(New style suspension)

NOTE: Custom units and sled hitches also available, ask for details.
